Transformer Impedance Vs Turns Ratio

- July 06, 2019

N fracn2n1. Equals the turns ratio squared.

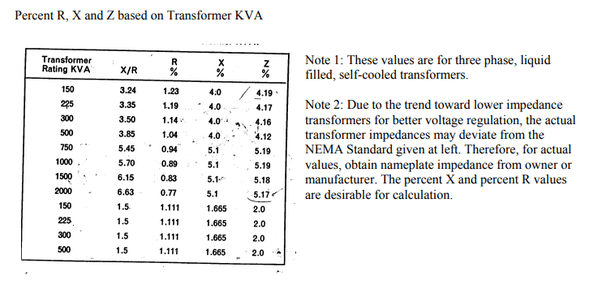

What Is The X R Ratio Of A Transformer Quora

Audio Transformer Its Types And Impedance Ratio

Impedance Matching With Transformer And Resistor

A transformer turns ratio calculator.

Transformer impedance vs turns ratio. Impedance ratio a 2 400 z 1 a 2 z l 400 x 96 3840 ohms. For impedance matching transformer the impedance ratio between primary to secondary can be calculated using the primary and secondary turn or the primary and secondary output voltage. The transformer impedance ratio is still the square of the turns ratio.

Assume the transformer to be ideal and determine the value of the impedance that the transformer and loud speaker place across the output of the amplifier. All we need to do is determine the turns ratio of the transformer and with that information we can calculate what impedance will be reflected back to the primary with a given load on the secondary. The impedance of the voice coil is 96 ohms.

Turns ratio a n 1 n 2 20. If the turns ratio of the transformer is given by. Audio transformer impedance ratio.

As i understand it impedance is the measure of frequency dependant resistance. Calculates the turns ratio needed to transform a given primary non reactive impedance to a given secondary non reactive impedance. It is sometimes useful to consider the transformer as a impedance transforming device.

I understand the concept of turns ratio. The optimum design of a modulator and final is more involved than simply calculating the modulation transformer impedances and turns ratio based on the published impedance properties of the tubes. Im still trying to grasp the difference between a 100100 vs.

Transformer and inductor design december 10 2016. Impedance is the most important factor for impedance matching transformers. This article covers various transformation ratios of a transformer such as voltage turns ratio current ratio and impedance ratio matching in detail along with solved examples.

Checking an unknown output transformer we can now use this knowledge to determine the impedance of any unknown output transformer. The power dissipation can be found by analyzing the behavior of the entire circuit including the source and its internal resistance the transformer ideal transformer plus loss resistance and the load circuit. A 15k15k transformer though.

Which parameters are important depend on the application but. Ie resistance at 60hz is different than 20khz. If a common power supply is used for modulator and final regardless of the impedance level the modulation transformer needs to have a turns ratio.

Calculates the turns ratio needed to match a given primary impedance to a given secondary impedance.
